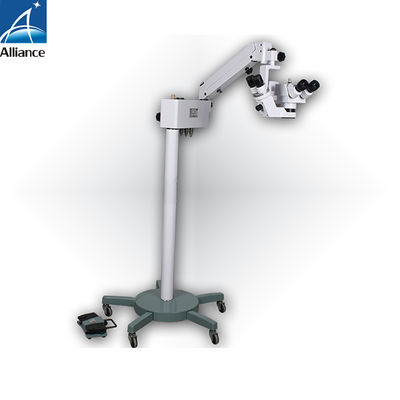

AL-4B ophthalmic and orthopedic special microscope for ophthalmic and orthopedic operations

AL-4B Special Microscope for Ophthalmic and Orthopedic operations

1. APPLICATION

It is developed mainly for the anastomosis of capillary and nerves in surgical micro-operations of ophthalmology, orthopedics, handsurgery, orthopedic surgery and gynaecology. It can also be used for experiments on animals; it is widely used in surgical micro-operations and for experiments on animals, is a medical, optical instrument with excellent quality and a reasonable price.

2. FEATURES

1) Clear lmageries Strong Stereoscopic Visual Sense

2) For Tow Doctors to Observe One light stream together

3) Hand-Mirror Provided

4) Wide Visual Angel

Coaxial Cold light Source

Bright and Clear in Depth

5) Slight Adjusting Of Positions by Foot Light and Handy Convenient For Operation and Carrying About

3 MAJOR TECHNICAL INDEX

1) Mechanical Features

A) Lifting Range of Support And Adjusting Range of Spring Arm: 250mm

B) Electric Slight Lifting Soeed: 2.5mm Per Second

C) Direction Adjusting Range

Level:±180ºLeft And Right: ±90º

D) Longest Turning Radius of Cross-Arm: 800mm

2) Electric Features

A) Strongest lntensity of illumination in Focula Centre. Not Less than 15000LX

B) Bromine Tungsten Lamp: 8V 50W

C) Voltage of Power: 220±10% 50Hz
