Model |
BD-S- 8A |
|
|
Main body |
Optics system |
Apochromatic optical system |
|
main view eyepiece |
10 X ELF wide field eyepiece |
|
|
eyepiece tube |
0°- 90°optical hinge Variable Angle binocular. |
|
|
diopter regulation range |
±6D (binocular) |
|
|
Front to back regulation range |
- 45 °~ + 45° |
|
|
Left to right regulation range |
- 30 °~ + 30° |
|
|
interpupillary distance regulation |
55 mm - 76 mm continuous regulation |
|
|
magnification |
5X - 20X manual stepless continuous zooming |
|
|
Dia. of view field |
10 mm - 50 mm |
|
|
working distance |
160 mm |
|
|
Illumination system |
light model |
Wide channel optical fiber, coaxial cold light |
|
light source |
Double 15V/ 150W, German OSRAM halogen lamp, |
|
|
light regulation |
Four grade regulation. |
|
|
illuminance |
50000 LX |
|
|
power supply |
AC 220V ± 10% ; 50HZ ±1 HZ |
|
|
Control |
Arm extension radius |
1050 mm |
|
Up - down regulation range |
230 mm |
|
|
Fine-focus adjustment range |
40 mm ± 10% |
|

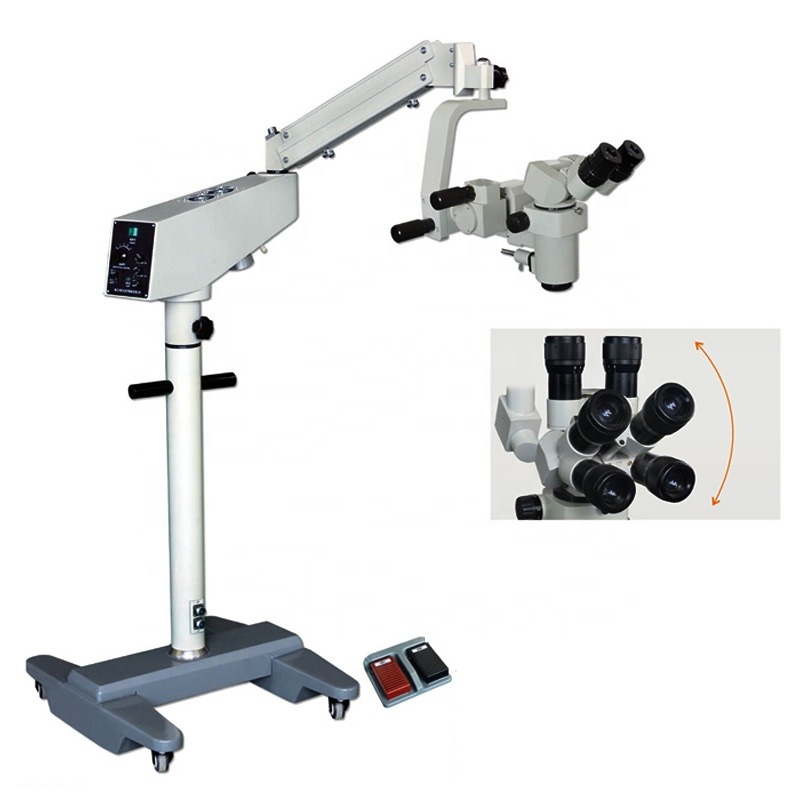

The XT-X-8A Opreating microscope is an universal operating microscope.
1) It is fit for neuro, spinal, vascular, plastic and reconstructive surgeries.
2) It can be used by 2 doctors at the same time.
3) With integrated digital recording system, it is also fit for teaching.
4) Continuously zoom. Control by knob and foot panel or knobs.The change of zoom is smooth.
5) Rapid focusing on small increases, the retarded focusing on great increases.
6) With 3 kinds of objectives, fit for different depth surgery.
7) Four groups of illumination.Control by knob and foot panel.
8) Turning of extension hand around the axis.
9) The support can keep balance at any plance.
10)Automatic balancing of the microscope.
11)Multifunctional Control panel on the support.
12)Optional modules: Camera Horizontal permission: not less than 800 lines Vertical permission: not less than 400 lines Output size: not less than - 494 line
