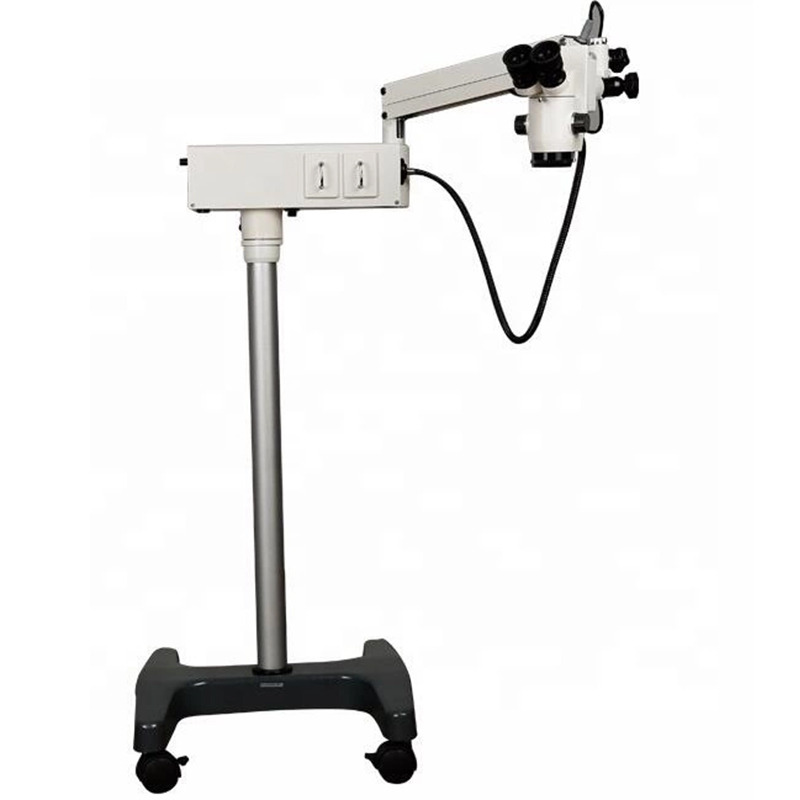

Home /Products/Dental Operating Microscope/YZ-20P5 Ophthalmology Instruments Rolled Digital Dental Microscope Operation Cost YZ-20P5

YZ-20P5 Ophthalmology Instruments Rolled Digital Dental Microscope Operation Cost YZ-20P5

1 Piece
MOQ
$2,500.00(1 - 2 Pieces) $2,388.00(>=3 Pieces)
Price
YZ-20P5 Ophthalmology Instruments Rolled Digital Dental Microscope Operation Cost YZ-20P5
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YZ-20P5
Theory:: Fluorescence Microscope
Drawtube: Binocular
Eyepiece Magnification: 12.5
Objective Lens: F=200
Working Distance: 190mm
Magnifications For Main Microscope: 5.3,8,12
Diameter Of Field: 37mm,25mm,16.7mm
Diopter Adjustment: 7D
Illumination Source:: 12V/100W,medical Cold Reflection Halogen Lamp
Maximal Resolution: 100LP/mm
Basic Infomation
Model Number: YZ-20P5
Payment & Shipping Terms
Packaging Details: strongest cartons which people can stand on it
Product Description
Product Description

Operation requirements.
Specifications :
1.Eyepiece Magnification : 12.5
2.Objective Lens : f=200
3.Working Distance : 190mm
4.Magnifications for Main Microscope : 5.3,8,12
5.Diameter of Field : 37mm,25mm,16.7mm
6.Diopter Adjustment : 7D
7.Pupil Distance : 50mm~80mm
8.Maximal Resolution : 100LP/mm
9.Illumination Source : 12V/100W,medical cold reflection halogen lamp
10.Illumination Type : 6+0Coaxial cold light source illumination
11.Coaxial Illumination : ≥30000lx
12.Reaching Radius of Arm : 870mm
13.Adjustable Vertical Range : 700mm~1100mm
14.Fine Focusing Range : 30mm
15.Input Voltage : AC220V22 V / 50Hz1Hz,AC110V11V /60Hz1Hz
16.Power : 120VA
17.Fuse : AC250V T1.25A ,AC125V T2.5A
18.Electrical Safety Standard : Executive Standard: GB9706.1-2007,type I

Eyepiece Magnification
12.5×
Focal Length of Objective Lens
F=200
Working Distance
190 mm
Magnification for Main Microscope
5.3×, 8×, 16×
Diameter of Field
37 mm, 25 mm, 16.7 mm
Diopter Adjustment
±5D
Pupilary Distance
50 mm ~ 70 mm
Maximum Resolution
100 LP/mm
Light Source
12V/100W halogen lamp for medical use
Illumination Type
6° coaxial illumination of cold light source
Coaxial Illuminance
≥30,000 Lx
Reaching Radius of Arm
870 mm
Adjustable Vertical Range
700 mm~1100 mm
Fine Focusing Range
30 mm
Input Voltage
AC 220V/110V±10%, 50Hz/60Hz
Power Consumption
120 VA
Fuse
AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard
IEC 60601-1, Class I
Packing Volume
0.2 m3,1 carton
Total Weight
41 kg
