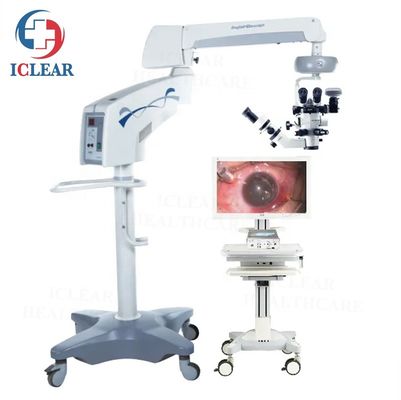

4-28X Medical Operating Ophthalmic Surgical Microscope for Anterior and Posterior Surgery
CHW-SM3000L
Available for retinal surgery by attaching BIOM System and inverter
Available for digital /video recording during surgery
Available for surgery trolley to save zoom in operating zoom
Features:
1. 1: 7 optical stepless zoom primary mirror
2. 0° -90° multi-angle adjustable binocular observation mirror
3. 10X, 12.5X wide field eyepiece
4. 90° coaxial same optical path assistant mirror
High-brightness double halogen lamp lighting device
Red light reflecting device
5. Working distance 200MM
6. Magnification 4X-28X
8. High-definition camera system/modular design customized on demand.
Specifications:
| Optics: | |
| Optic lens | Olympus SZX7 |
| Eyepiece | Comfort View 10x |
| Angle | 0-60° |
| Pupillary Distance | 50-76mm |
| Diopter Adjustment | ±5° |
| Depth of Field | Adjustable by Hand |
| Objective | Achromatic 60mm |
| X-Y Speed | 2.2mm/sec Foot control |
| Magnification | Motorized Zoom 4x-28x |
| Field of View | 8mm-40mm |
| Working Distance | ≥180mm |
| Focus Speed | ±20mm Foot control |
| Illumination System: | |
| Type | Aspheric Design |
| Light source | Double Bulb 15V/150W |
| Control | Foot Control 8 |
| Intensity | ≥60,000Lux |
| Power | ~220V, 50HZ |
| Retinal Protection | Retinal Protection |
| Red reflex | Aspheric Design |
| Assistant Tube: | |
| Type | Stereo & Coaxial |
| Magnification | 4x, 6x, 10x |
| Base Part: | |
| Length of Arm Extended | 1260mm |
| Elevation | ±200mm |
| Base Size | 720mm x 720mm |
| Foot Switch | X-Y |
It can be upgraded to digital by attaching a video recording system: beam splitter, video adapter, video camera, imaging capture card, and professional software.
Aspheric and BIOM added on objective could meet the demands of vitreoretinal operations.
The equipment is applied not only for ophthalmic operation but also for neurosurgical, ENT, Cardio-Thoracic Surgical operations, etc.
Optional accessories: oblique illumination, fundus aspheric lens, and inversion(BIOM) lens.
We supply all range of Operation/ Surgery Microscope, Welcome to inquire for more information.
Dental microscope
orthopedics operation microscope
ophthalmic operation microscope
ENT operation microscope
stomatology operation microscope
hand surgical microscope
plastics operation microscope
andrology surgical microscope
gynecology microscope
Urology microscope
brain surgical microscope
surgical microscope for head and neck
Neurosurgical microscope
animal anatomy operation microscope
desktop operation microscope
clipping type operation microscope
multifunctional operation microscope
mounted-wall operation microscope
| > if the machine broke after a period of use, can I return it back and get a refund? iClear HealthCare has a secure procedure to do the product return and repair, please check our service policy for more information. |
| > I have NO experience buying medical stuff in China. Is the quality good? There are multiple options in China for medical equipment, iClear HealthCare aims to provide high-quality products at a competitive price. |
| > How long will it take to reach me after the payment? By Express, it takes 5-7 working days to arrive; By Air, 3-4 days to the international airport; By Sea, around 25-55 days to the seaport. |
| >> Can you help set up a clinic or provide complete equipment for hospital projects? We have a series of complete solutions for clinics and hospital equipment setup. iClear HealthCare has helped set up several clinics and 2 hospitals in East Asia, African, and Saudi and supply all the medical equipment. These projects have saved a lot of time, money, and energy for our customers. |
