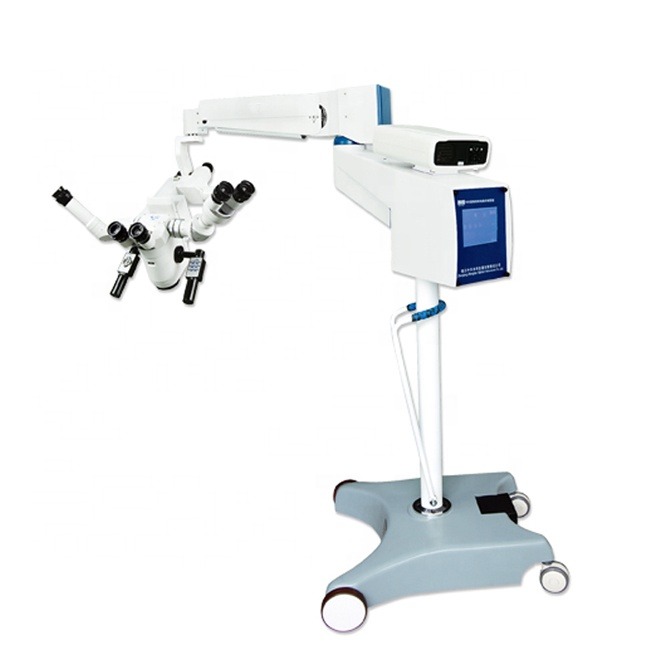

Good Quality Medical Ophthalmology Surgical Ophthalmic Operating Microscope ZK-OM-SJ-21

Eyepiece magnification

12.5X wide-angle, with diopter adjustment and limit device.

Adjustable range of PD:

55mm~75mm

Adjustable visual degree:

+5D~-5D

Binocular primary mirror with optical hinge, reversible

180°

the microscope head

It has six degree of freedom movement.

The left & right, front & back both motorized range of pitching

>100°, It is easy to positioning on operation.

Magnification form:

Both main and assistant microscope is continuous motorized magnification.

Magnification:

5X~25X, clear image,

the main microscope has a remarkable depth of field

the depth of field above 100mm, a sharp stereo-scopic perception, suitable for deep cavity operation. Both main and vice microscope can freely rotation to any position.

Double handlebar control

angle of left & right, angle of front and back, illumination, focus, magnification, such six adjustable functions. A key start, motorized control of joint tightness, easy to operate.

Fine focusing:

40mm

Foci of big objective lens:

200, 250, 300, 350, 400mm Five big objective lens

Xenon lamp coaxial cold light system

Double bulbs conversion in one second.

Range of illumination:

Φ10~85mm

Operation surface lighting:

illuminance of halogen lamp ≥800000 LX

Xenon light illuminance:

180000 LX (Better stereoscopic sensation), Has display of illumination brightness, continuous adjustable.

Full computer stepless dimming / stepless up-down / stepless zoom, electromagnetic lock positioning rack space, each rotating joints can be any position,

the bracket maximum extension radius

1200mm

vertical racks rough adjustment range

500mm

the appearance with streamlined design, the switch uses membrane switches and LCD design, it can save the doctor's medical parameters 8, forming the handle control and touch screen control dual control double insurance.

Optional:

CCD camera system and digital camera system
